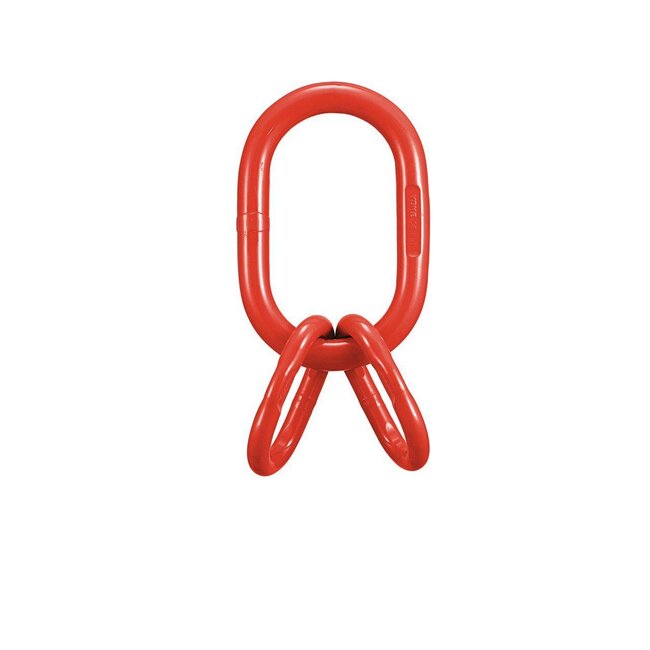

Yoke offshore topschalm 3-4 sprong Lees meer.
Specificaties:
| Assembled with. | Assembled with. | WLL | Proof | can be used to single hook according to | Afmetingen (mm) | |||||
| b 0-45° | Load | DIN 15401 NO. | ||||||||
| tonnes | kN | D | A | B | d | a | b | |||
| FD-161 | +2 FD-131 | 4,1 | 100 | 4 | 16 | 140 | 70 | 13 | 90 | 50 |
| FD-222 | +2 FD-191 | 8,9 | 218 | 6 | 22 | 162 | 90 | 19 | 140 | 70 |
| FD-223 | +2 FD-161 | 6,3 | 154 | 16 | 22 | 270 | 140 | 16 | 140 | 70 |
| FD-251 | +2 FD-19 | 8,9 | 218 | 16 | 25 | 275 | 145 | 19 | 160 | 90 |
| FD-28 | +2 FD-22 | 12,9 | 316 | 16 | 28 | 275 | 145 | 22 | 180 | 100 |
| FD-282 | +2 FD-223 | 14,5 | 355 | 10 | 28 | 200 | 110 | 22 | 140 | 70 |
| FD-32 | +2 FD-25 | 17 | 417 | 16 | 32 | 275 | 145 | 25 | 210 | 115 |
| FD-361 | +2 FD-281 | 23,6 | 578 | 16 | 36 | 275 | 145 | 28 | 190 | 100 |
| FD-40 | +2 FD-32 | 28,1 | 688 | 20 | 40 | 300 | 160 | 32 | 275 | 145 |
| FD-45 | +2 FD-36 | 38,3 | 938 | 25 | 45 | 340 | 180 | 36 | 285 | 155 |
| FD-50 | +2 FD-401 | 45 | 1103 | 32 | 50 | 350 | 195 | 40 | 260 | 130 |
